Description
Overview
Essential details
- Model Number:
-
8 ports 4g gsm modem
- Type:
-
VoIP Gateway
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
SK TYH
- Network:
-
Wireless Lan, Wired LAN, 4g, GSM, 3G, Wiegand
- Product name:
-
GSM MDOEM
- Warranty:
-
12 Months
- Power supply:
-
12v/1A
- Color:
-
Black
- Condition:
-
100% Original Brand
- Ports:
-
8
- Module:
-
4G EG91/EC25
- Weight:
-
1.065KG
- Interfaces:
-
USB
- shipping:
-
3days
Supply Ability
- Supply Ability
- 1111 Piece/Pieces per Day
Packaging & delivery
- Packaging Details
25*15*21
1.55KG
- Port
SHENZHEN
- Picture Example:
-
- Lead time:
-
Quantity(pieces) 1 – 1 2 – 10 >10 Lead time (days) 3 5 To be negotiated

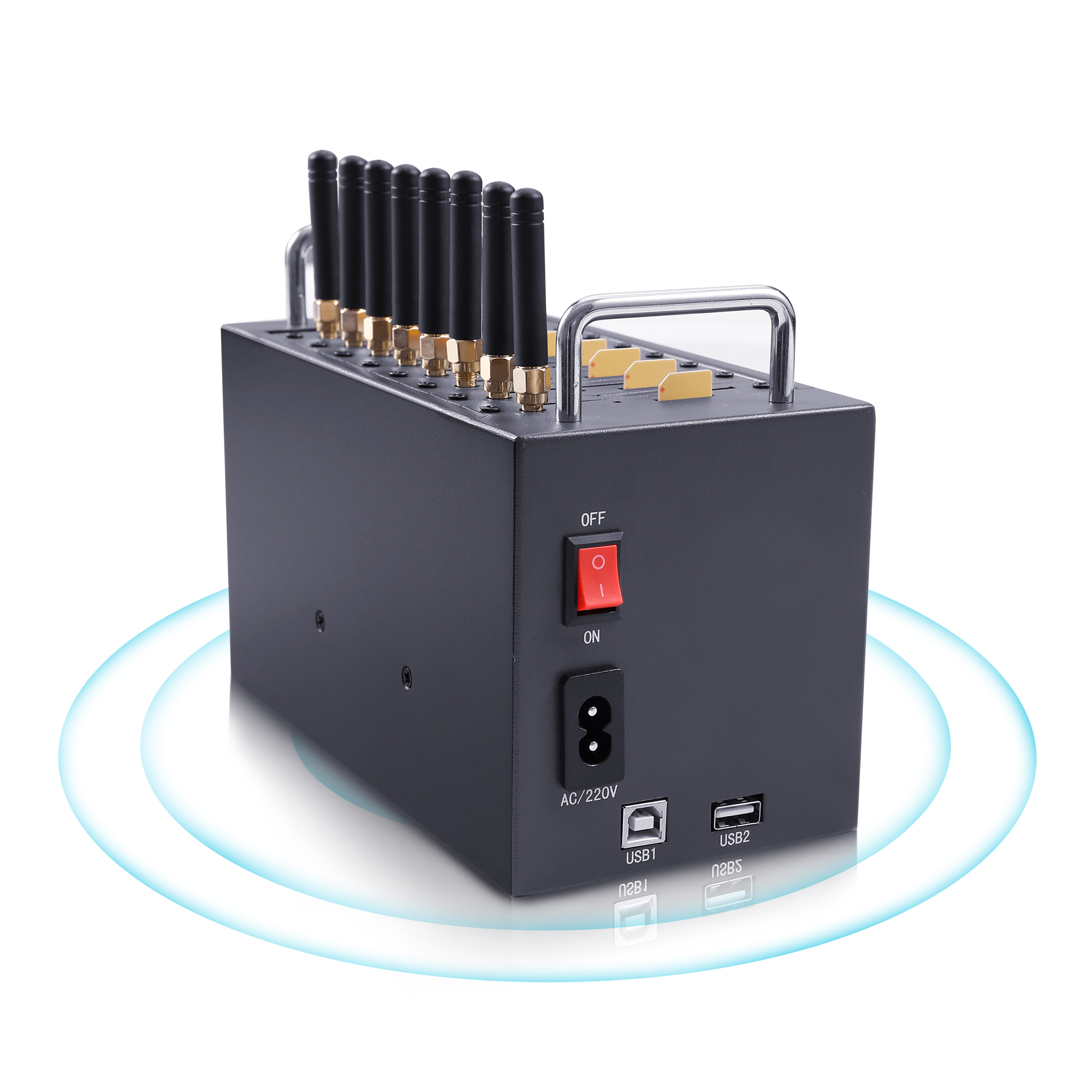

Product Description
|
Product Name
|
8 Port Gsm Modem
|
|||
|
Function
|
Send & Receive SMSIMEI Change
AT Command Send USSD Voice Call |
|||
|
Optinal Module
|
2G: M26
3G: UG96, UC20 4G: EC25-AUX/EUX/AFX |
|||
|
Optional Ports
|
8, 16, 32, 64 Ports
|
|||
|
SMS
|
Support Text and PDU mode
|
|||
|
Power consumption
|
Voltage : 3.6V Class4(2W@850/900MHz)
Class1(1W@1800/1900MHz) |
|||
|
Input
|
110~240AC/50~60HZ
|
|||
|
Interface
|
USB 2.0 & USB 3.0
|
|||
|
Protocol
|
TCP/UDP/PPP/MMS/HTTP/HTTPS/SMTP/ SMTPS/FTP/NTP/NITZ/PING/SSL
|
|||
|
Compaitible System
|
windows 2008 R2, Windows 7, Vista, XP, 2006/2000, 98SE/CE, LINUX.
|
|||
Specifications:
1.Connect with the Computer through USB line for USB type 2.USB Interface (Optional) 3.Can send and receive SMS in bulk 4.Can dial the number. 5.Industrial Chassis, Elegant Appearance design.
6.support Windows XP, Windows7, Linux, Unix OS etc. 7.Support AT command 8.Support HTTP SMTP protocol 9.Baud rate: 115200 bits/s 10.Automatic baud rate: from 2400 to 19200 bits/s 11.GPRS compatible 12.SMA antenna interface 13.SMS: support MT, MO, CB, Text and PDU mode 14.SIM interface: 32 SIM cards slot
Product Usage

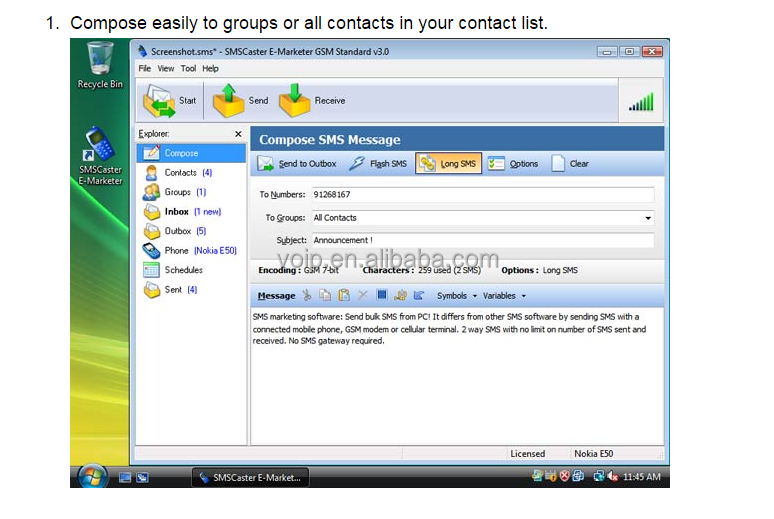

SMS MODEM Guidance:

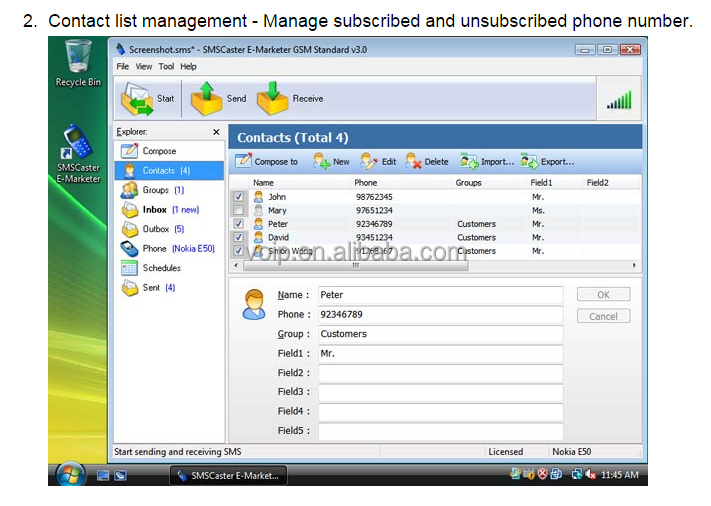

1.Install SMSCaster like common software and close it after installing successfully 2.Connect the GSM MODEM to computer correctly, and then there will be a promptfrom computer to install driver. 3.Select the driver path for every port, it will install automatically. 4.After completing the driver installation, starting SMSCaster program, all ports willbe found..
How to change IMEI :
1.Register your sim cards ; Fine COM port
2.Use PuTTY login in COM port
3.Command：1.input ate1 enter，this is display command 2.Change IMEI ‘s command：IMEI（how to change the module imei (1) use putty to login the module (2) input the at command ATE1 to echo display (3) AT+EGMR=1,7,”359231033480797″this at command will change the module imei to 359231033480797, and plz notice that you have to use the correct imei number if not the imei will be changed back to factory after reboot.）
Company Introduction
China Skyline Telecom Co., Ltd
China Skyline Telecom Co., Ltd. was founded in 2007. Focus on the communications industry for more than 10 years. We have over 150 employees, 15 departments and more than 10 production lines. More than 200 companies from over 60 different countries have established business with us. Our company is a manufacturer of VoIP Gateways, GSM VoIP gateways, Industrial Routers… with well-equipped testing devices and strong technical force. With a wide range, good quality, reasonable prices and stylish designs,our products are extensively used in communication industry and other industries.
Packing&Shipping
Payment
We can do alibaba transaction so that we can get quality guarantee.

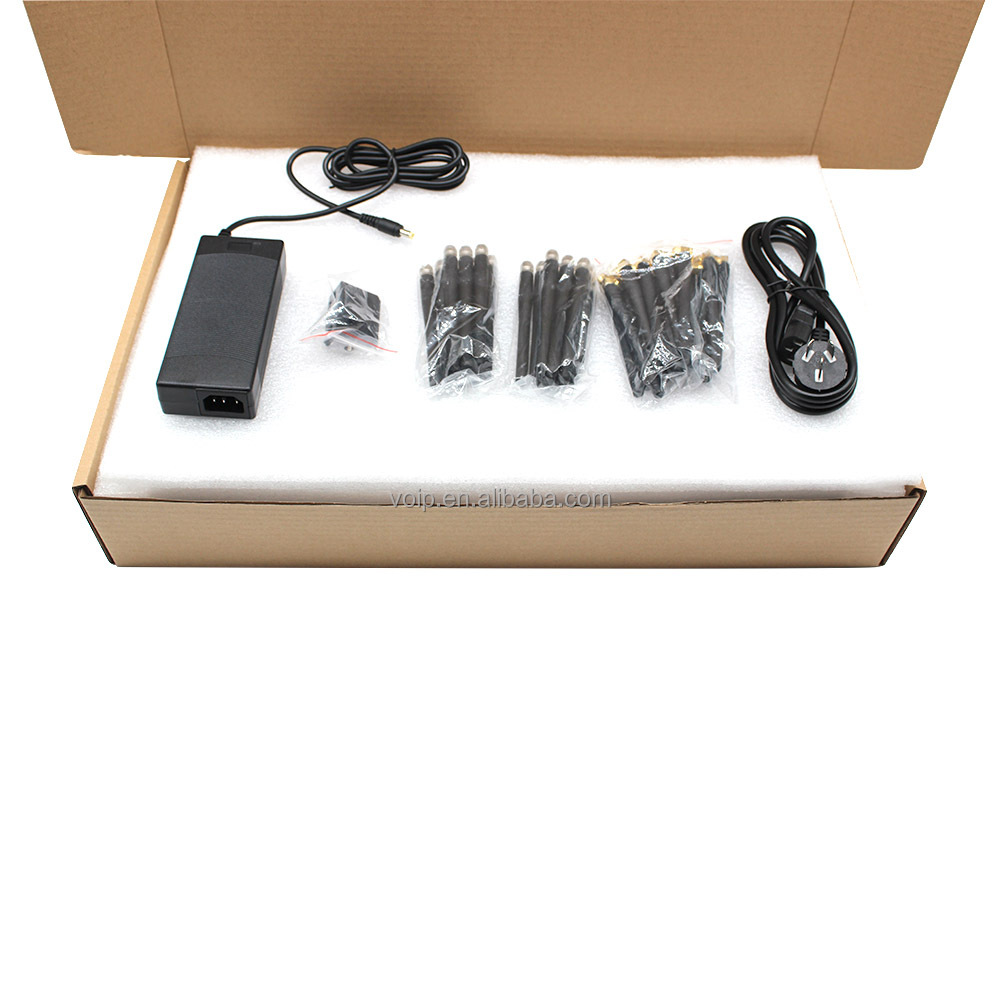

Packing
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
will be provided.
Shipment
We will do door delivery with custom clearance included via UPS, DHL,ARAMEX,EMS,TNT……to make sure you will get the parcel without any issue.
